Die-Cast Enclosures

Hammond Mfg. has extended its popular 1590 family with the introduction of the 1590TRP and STP models.

title
title

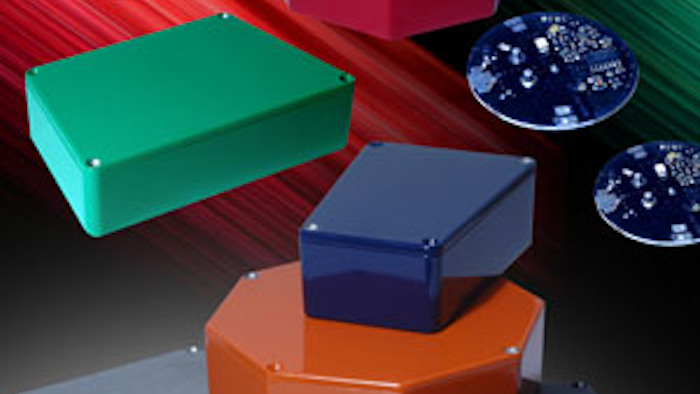

1590TRP and STP modelsHammond Mfg. has extended its popular 1590 family with the introduction of the 1590TRP and STP models. According to the company:

  • The first applications for the new shapes have been for audio equipment, guitar stomp boxes, industrial remote controllers, desktop switch arrays, and hand-held test equipment controllers.
  • The octagonal 1590TRP is 5.23 inches (133mm) across the flats and 1.54 inches (39mm) high; it will house a circular PCB up to 5.0 inches (126mm) in diameter.
  • The two 1590STP trapezoidal units are also 1.54 inches (39mm) high; the smaller portrait format unit is 4.41 inches (112mm) long, narrowing from 3.11 inches (79mm) to 2.42 inches (62mm); the larger landscape format is 3.74 inches (95mm) deep and narrows from 5.95 inches (151mm) to 4.79 inches, (122mm).
  • All three types are available in natural finish and in a smooth gloss polyester powder paint, which does not chip after machining and provides a good surface for labels and silk screening.
  • The strong and vibrant painted colors include: Black; Cobalt Blue, RAL 5013; Green, RAL 6024; Light Gray, RAL 7035; Orange, RAL 2009 and Red, RAL 3011.
  • A lap joint seals the units to IP54, protecting against the ingress of dust and water, and the painted finish is only applied to the external surfaces, maintaining RFI integrity.
