Going With The Flow — Digitally

Brooks Instrument has developed new digital communications capabilities for its 4800 Series mass flowmeters and mass flow controllers.

title
title

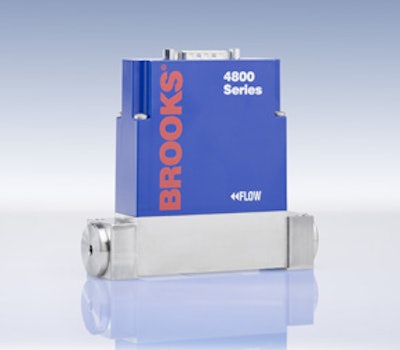

Brooks Instrument has developed new digital communications capabilities for its 4800 Series mass flowmeters and mass flow controllers. In addition to the analog and RS-232 communications, customers can now choose Profibus or RS-485, which is delivered in a small field-installable module that mounts directly on top of the 4800 Series device. The 4800 Series with:

  • Profibus fosters both DPV0 cyclic and DPV1 acyclic data communication; incorporates a standard 9-pin female D-connector for signal and an M5 connector for power; and supports baud rates from 9,600 up to 12 million, which are automatically detected.
  • RS-485 has a physical layer with a proprietary S-Protocol based on the HART® command set; includes a standard 15-pin male D-connector for signal and power; and supports baud rates from 1,200 to 38,400 with a top-accessible rotary switch for baud rate selection.

brooksam@brooksinstrument.com
www.brooksinstrument.com
