Large-scale Carbon Filter Tanks

Shown are two 5,000-gallon stainless steel vessels fabricated, designed and stamped for 100 psig at 230 degrees F in accordance with the ASME Code Section VIII, Division 1. Each tank is supplied with various size nozzles, lifting lugs, contoured...

Mnet 122677 Ross Carbon Filter Tanks

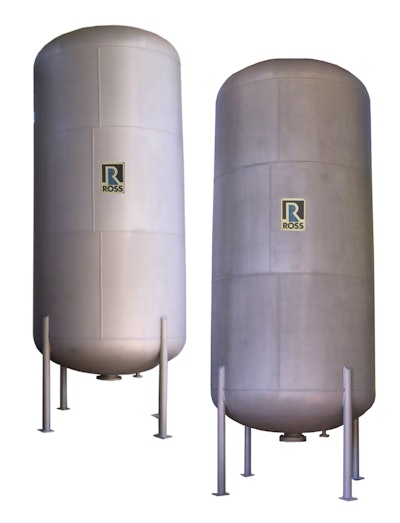

Ross Engineering, a custom fabricator based in Savannah, GA, now offers large-scale elliptical head pressure vessels for use as carbon filter tanks. Shown are two 5,000-gallon stainless steel vessels fabricated, designed and stamped for 100 psig at 230 degrees F in accordance with the ASME Code Section VIII, Division 1. Each tank is supplied with various size nozzles, lifting lugs, contoured pipe legs and an elliptical manway.

Ross Engineering accepts a wide range of fabrication projects for almost any use, application or environment. Capabilities include:

• Storage tanks, pressure vessels and reactors up to 100,000 gallons or larger.
• Many choices for material of construction: carbon steel, stainless steel, aluminum, titanium, Monel, Hastelloy and Inconel.
• Agitators and mixer controls.
• Heating/cooling jacket, internal coils, electrical heat tracing, or heat exchanger.
• Sheathing and insulation.
• Sanitary design and finish.
• Special coatings and tank liners.
• ASME, USFDA, BISSC, ABS, API 650/620, UL 42 and other codes.
• Non-destructive testing.

To discuss your fabrication requirements, contact Sales Manager Seavy O’Neal at 912-238-3300 / 1-800-524-7677 or soneal@mixers.com. Ross Engineering, Inc. is located at 32 Westgate Blvd., Savannah, GA 31405.
