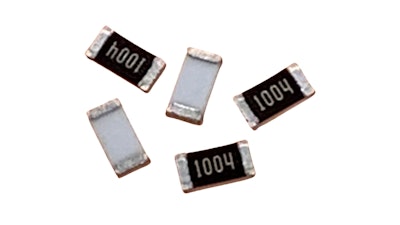

RALEIGH, NC – Stackpole Electronics has announced the RVCU series of high voltage chip resistors, offering improved precision and stability for demanding high voltage applications.
The RVCU series is designed for use in voltage dividers and measurement circuits where high voltage handling and accuracy are critical, reducing error compared to conventional chip resistors.
Features & Benefits:
- VCR of 25 to 50 ppm (depending on resistance value)
- Measurement error reduced to 2.5–5% over a 1000V change
- Working voltage range:
- 800V (1206 size)
- Up to 3000V (2512 size)
- Resistance range: 75 kΩ to 27 MΩ
- Tolerances as low as 0.5%
- TCR: 100 ppm
- AEC-compliant and anti-sulfur construction
- Meets IEC-62368 standards for audio/visual and communication equipment
Well-suited for commercial high voltage LED lighting, medical devices, test and measurement instruments, communications systems, and voltage dividers in transmission and control applications.
Pricing varies based on size, tolerance, and resistance value. Contact Stackpole or an authorized distributor for specific quotes.
For more information, visit Stackpole Electronics.
