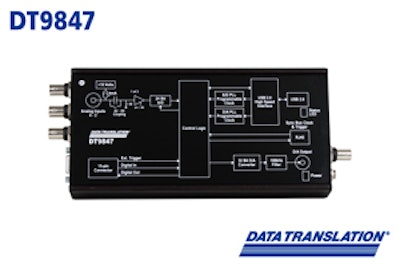

[[{"type":"media","view_mode":"media_original","fid":"28698","attributes":{"alt":"","class":"media-image","height":"200","style":"float: right; margin: 10px;","typeof":"foaf:Image","width":"300"}}]]Data Translation (Marlboro, MA) announced the release of the DT9847 Series high-accuracy, dynamic signal acquisition modules for USB. These modules are ideal for precision measurements with microphones, accelerometers, and other transducers that have a large dynamic range. Common applications include audio, acoustic, and vibration testing. Key features include:
- Flexible channel configurations with portable, USB-powered models available
- Simultaneous analog input and analog output operations (continuous or waveform mode)
- 24-bit A/D converter per channel (up to 3 analog inputs depending on model)
- Up to 216 kSamples/s/ch
- Input range of ±10 V with software selectable gains of 1 and 10 for an effective input range of ±10 V and ±1 V
- Support for IEPE (Integrated Electronic Piezoelectric) inputs, including use of a 4 mA current source with 18 V compliance voltage for AC or DC coupling
- 32-bit D/A per channel with sampling rate up to 216 kSamples/s/ch (1 or 2 depending on model) and output range of ±3 V
- Digital I/O: 4 input lines and 4 output lines
- Supports a start trigger for acquiring pre-trigger samples and a reference trigger for acquiring post-trigger samples
- Sync Bus (RJ45) connector for synchronizing acquisition on up to four DT9847 Series modules
- Included drivers and software
- Supported by VIBpoint Framework (available as 14-day trial version)
Visit www.datatranslation.com to learn more.
