Temperature Data Logger

Omega introduces its new series of pressure/temperature data loggers.

title
title

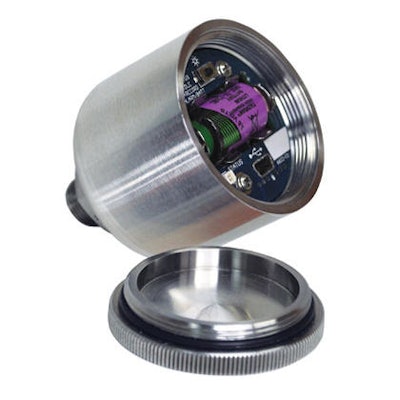

Omega introduces its new series of pressure/temperature data loggers.The OM-PR Series pressure/temperature data loggers are battery powered stand alone water tight compact data loggers that record up to 64,000 samples of pressure and/or temperature data. The OM-PR series features a temperature range of -20 to 85 degrees Celsius (-4 to 185 degrees Fahrenheit), pressure ranges are 35, 150, 350, 550, 2000, 5800 psia and vacuum ranges are 760 and 380 Torr. The data logger is packaged in a rugged submersible 316L stainless steel housing and has a standard ¼ NPT fitting. This CE compliant product has 150% over range protection, programmable start/stop time and sample rates, up to 64,000 samples per record, alarm set points and a 5 year battery life. Windows software (included) turns your PC into a real time data acquisition system.

For more information, please visit www.omega.com
