EAZY CAL™ Signal Conditioner

Modern signal conditioners offer a virtually effortless front panel fingertip routine for easy field calibration.

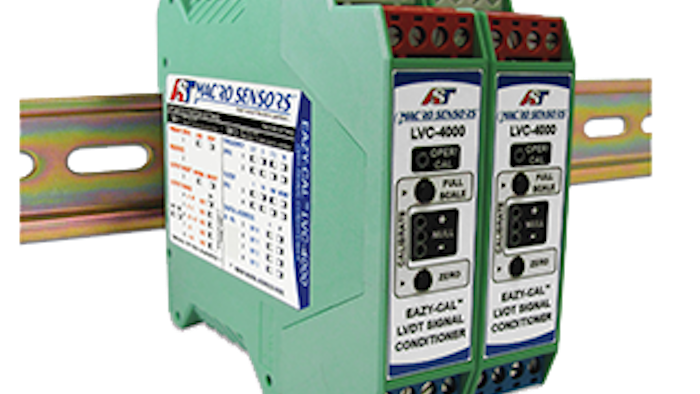

[[{"fid":"160989","view_mode":"media_original","type":"media","attributes":{"height":232,"width":320,"style":"float: right;","alt":"EAZY CAL\u2122 Signal Conditioner","title":"EAZY CAL\u2122 Signal Conditioner","class":"media-element file-media-original"}}]]Calibration is necessary before the installation of an AC-operated linear position sensor to ensure accuracy, says Macro Sensors (Pennsauken, NJ).  Calibration corrects any slight variances between sensors, helping to improve repeatability. Because of the linearity of LVDT Sensor output, a two-point calibration is simple. In applications where the LVDT is used on both sides of null, the calibration points should span the entire range of measurement. Traditionally, AC-operated LVDT Sensors were not easy to calibrate. Modern signal conditioners, like Macro Sensors EAZY CAL™ Signal Conditioner , offer a virtually effortless front panel fingertip routine for easy field calibration.

To view a detailed video that shows the calibration of a LVDT linear position sensor using the EAZY CAL Signal Conditioner, explaining suggested calibration equipment, mechanical mounting of the signal conditioner, input and output connections, LVDT wiring, core position, and the calibration routine, please click here .
