Fiber Laser Windows

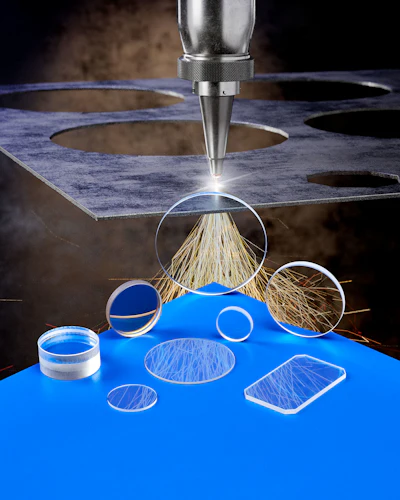

A line of sapphire cover glass windows that have lower bulk absorption and about 30 times higher thermal conductivity than quartz protection glasses has been introduced by Laser Research Optics of Providence, RI.

Mnet 176128 15686

A line of sapphire cover glass windows that have lower bulk absorption and about 30 times higher thermal conductivity than quartz protection glasses has been introduced by Laser Research Optics of Providence, RI.

Laser Research Sapphire Fiber Laser Windows feature Mohs 9 hardness which is second only to diamond and have A/R coatings on both sides to provide transmission of > 99.5 percent at 1.06 microns with > 80 percent at 650-670 nm. Reducing focus shift and the deterioration of beam quality, these sapphire windows can withstand steel splatter, flash, and debris better than fused silica.

Ideally suited as debris shields on 1064 nm cutting and welding lasers, Laser Research Sapphire Fiber Laser Windows reduce the number of required lens changes on high power lasers from 4 kW and above and extend their service lifetime. Providing a 10-5 scratch-dig finish and 1/4 wave transmitted wavefront, they are available in 0.5-inch and 2.0-inch sizes.
