Rugged BFX displays

Chassis Plans’ announces new side-by-side 24-inch rugged displays that offer a multitude of available video input formats in a 2U rackmount package.

Mnet 176111 Bfx Displays Chassis Plans300

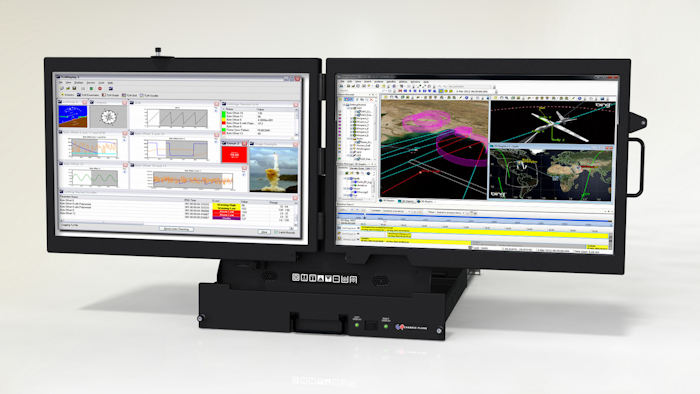

Chassis Plans’ new BFX displays rugged, military grade, high performance, 2U rackmount LCD panel displays offers two 24-inch TFT LCD displays with per panel resolution of 1920x1200. 1000:1 contrast ratio, and 4ms response time.

The 37-pound BFX1-24 is ideal for deployable transit case integration where both image quality and display toughness are required. Both displays in the BFX are offered with bonded cover glass with anti-reflection and EMI surface treatments for MIL-STD-461G certification. 1The BFX1-241 model is optimized for reliable operation in extreme outdoor and challenging environments and can operate in widely varied temperatures (0°C to 50°C / -25°C to 60°C).

The BFX displays support a wide range of video resolutions — from 640x480 all the way up to 1920x1200; video inputs include VGA, DVI Dual Link, HDMI, DVI-D and NTSC/PAL/SECAM video as well as Composite Video and S-Video.

Other functions and options include up to 10 bit per color, 16.7 million colors, On Screen Display (OSD) menu, Image Scaling: Up scaling to fit input to panel resolution. Image control features include auto configuration, brightness, contrast, clock, phase, color temperature, image position, saturation, hue, gamma.

Additional Features

  • System Information
  • OSD position
  • scaling to fill screen and fill to aspect ratio
  • OSD timeout
  • factory reset
  • OSD menu transparency
  • Horizontal & Vertical image inversion
  • Picture in Picture
  • Picture by Picture variable positions
  • RS-232 or Ethernet command and control


In addition to its outstanding video performance, the BFX displays include two integrated, water resistant speakers. Chassis Plans’ BFX displays can operate on a range of power sources — including universal input 85 to 245 VAC MIL-STD-1275/704 28 VDC, with options for 12VDC and 400Hz AC input as well.
