Intelligent Servo Drive

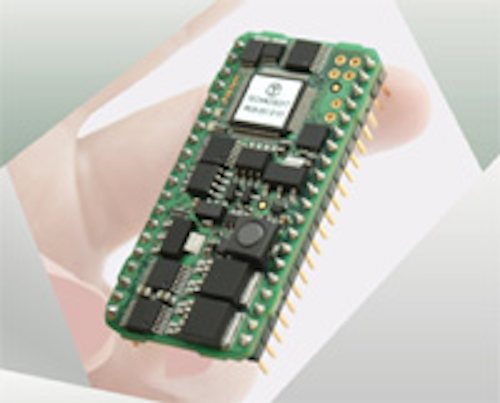

The iPOS3602 MX is designed for motion control applications where space is critical. The unit can be integrated within seconds to the user's motherboard or PCB machine. All basic motor control functions, as well as motion control and PLC features, are embedded onto this unit, which measures 55 x 26 x 13 mm and 10 g.

title
title

[[{"type":"media","view_mode":"media_large","fid":"127514","attributes":{"class":"media-image","style":"float: right; margin: 10px;","typeof":"foaf:Image"}}]]The iPOS3602 MX is designed for motion control applications where space is critical. The unit can be integrated within seconds to the user's motherboard or PCB machine. All basic motor control functions, as well as motion control and PLC features, are embedded onto this unit, which measures 55 x 26 x 13 mm and 10 g. Equipped with CAN/CANopen and optional with EtherCAT interfaces, the unit provides a flexible, compact solution adapted to the decentralized control of any rotary or linear brushless, DC brush or step motor up to 75 W (36 V, 2 A). Due to embedded intelligence, the product is able to run complex motion commands directly at drive level. Using the TML language, multiple operations can be executed, including setting of various motion modes, change of motion modes and parameters, execution of homing sequences or program flow control.


TECHNOSOFT, www.technosoftmotion.com
