Powder Feeding and Mixing Skid System

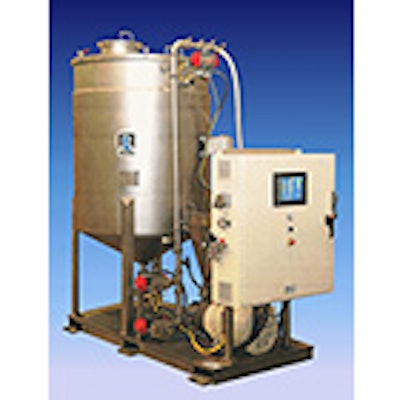

Designed for automatic ingredient additions and high-speed mixing, the Solids/Liquid Injection Manifold (SLIM) Mixer is piped to a 400-gallon jacketed tank and mounted on a compact skid.

title
title

[[{"fid":"134255","view_mode":"default","fields":{"field_file_image_alt_text[und][0][value]":"","field_file_image_title_text[und][0][value]":""},"type":"media","attributes":{"height":184,"width":140,"style":"float: right; margin: 10px;","class":"media-element file-default"}}]]Designed for automatic ingredient additions and high-speed mixing, the Solids/Liquid Injection Manifold (SLIM) Mixer is piped to a 400-gallon jacketed tank and mounted on a compact skid. Flow meters, load cells, solenoid valves, level sensors and thermocouples are all integrated into a PLC Recipe Control Panel. Each ingredient addition and each step in the mix, drain and clean cycles are pre-programmed so that mixer speed, mixing time, temperature set-point, composition and batch weight are accurately replicated and recorded in every run. Compared to traditional batch mixing, the automated system can cut process times by 80 percent or more.


Charles Ross & Son Company, www.mixers.com
