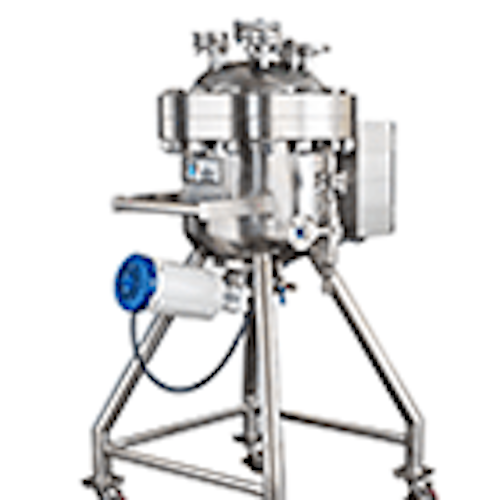

Company introduces a new line of Compounding & Filling Vessels with magnetically-coupled turbine agitator for sanitary applications. The 60-liter vessel features an aseptic magnetic mixer designed to stir a low-viscosity suspension as it is being discharged under pressure of nitrogen and filled into its final container. Particles that tend to settle out easily are constantly blended to ensure accurate composition all throughout the discharging/filling process. The magnetically-coupled turbine floats during operation up to 490 rpm. Because it is bottom-mounted, complete mixing is ensured regardless of batch level. It is optimized for cleaning and sterilization with no mechanical seals or stuffing boxes to pose a contamination risk. In between batches, a CIP tube and spray ball assembly is lowered into the vessel. Cleaning solution is sprayed in a 360 degree pattern at 34-53 gpm (15-37 psi). The portable vessel is rated for 375 psi to full vacuum at 250 degrees Fahrenheit. Both the vessel and jacket are ASME Code stamped and board certified. All wetted parts are stainless steel 316L with 240-grit finish, electro polished and passivated. The product is easily wheeled from one location to another using swivel casters and FDA-compliant antri-microbian wheels with brakes. Product can be built custom up to 20,000 liters working volume.
Charles Ross & Son Company www.mixers.com
