Ultra-High Shear Mixer

Sample applications include beverage and flavor emulsions, nutritional supplements, fiber dispersions, sauces, dressings, condiments, creams, purees and confectionaries.

title
title

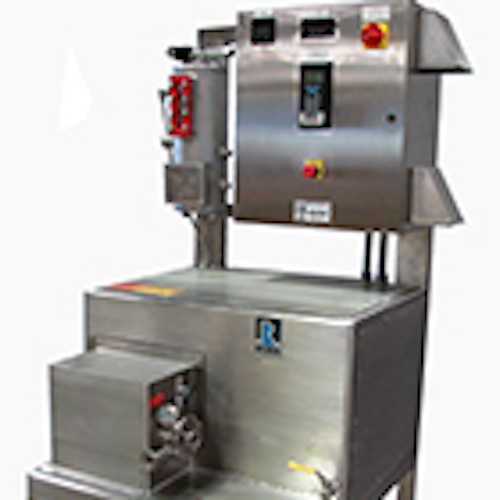

HSM-703XC is a new and improved model of the 10HP X-Series Ultra-High Shear Mixer. This advanced inline rotor/stator mixer generates very fine dispersions and emulsions with exceptionally narrow particle size distribution. It offers more vigorous mixing, greater size reduction and higher throughput compared to conventional rotor/stators and colloid mills. Sample applications include beverage and flavor emulsions, nutritional supplements, fiber dispersions, sauces, dressings, condiments, creams, purees and confectionaries. The X-Series mixing head (US Patent No. 5,632,596) is a precisely-machined stator with concentric rows of teeth and a matching rotor turning at tip speeds over 11,000 ft/min. Process fluid enters from the center and accelerates outward through channels in the intermeshing teeth of the rotor/stator. This high-velocity flow subjects the product to thousands of intense mechanical and hydraulic shearing events in a single pass.

Charles Ross & Son Company www.mixers.com
