Laser Alignment System

The ROTALIGN ULTRA MultiCoupling feature allows the alignment of up to 7 machines in a train to be measured simultaneously, with a single quarter rotation of the shafts. This saves time and resources when aligning turbine trains on the critical path in an outage, or machine trains with gearboxes that are difficult to turn.

title
title

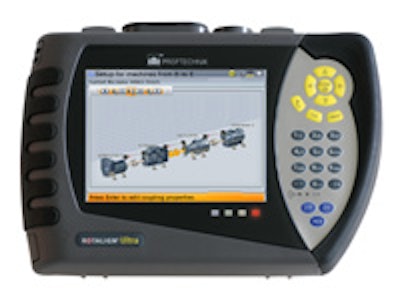

[[{"type":"media","view_mode":"media_large","fid":"127493","attributes":{"class":"media-image","style":"float: right; margin: 10px;","typeof":"foaf:Image"}}]]The ROTALIGN ULTRA MultiCoupling feature allows the alignment of up to 7 machines in a train to be measured simultaneously, with a single quarter rotation of the shafts. This saves time and resources when aligning turbine trains on the critical path in an outage, or machine trains with gearboxes that are difficult to turn. Data can be transferred wirelessly between the computer and the sensors. Graphical color alignment reports are available as PDFs. Different measurement modes are available for each individual coupling. Color tolerance arrows assist the user during machine corrections.


LUDECA, www.ludeca.com
