Full-Port 'True' Wafer Ball Valves

Bonomi North America’s new “true” wafer stainless steel full-port ball valves are a flow-enhancing alternative to high-performance butterfly valves in OEM applications, skid-mounted systems or any tightly-confined area.

title
title

CHARLOTTE, N.C. – Bonomi North America’s new “true” wafer stainless steel full-port ball valves are a flow-enhancing alternative to high-performance butterfly valves in OEM applications, skid-mounted systems or any tightly-confined area. Designed for use in ANSI Class 150 flange applications, the new Valpres 725000 Series can reduce space, cost and weight in any process, with maximum flow and minimum pressure loss.

Built with a stainless steel body, ball and stem, the new valves feature an anti-static stem design suitable for environments such as refining, chemical handling and processing. They are available in seven sizes: 1”, 1-1/4”, 1-1/2”, 2”, 2-1/2”, 3” and 4”.

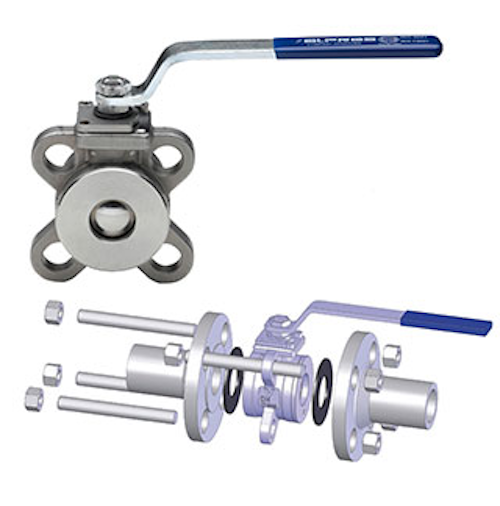

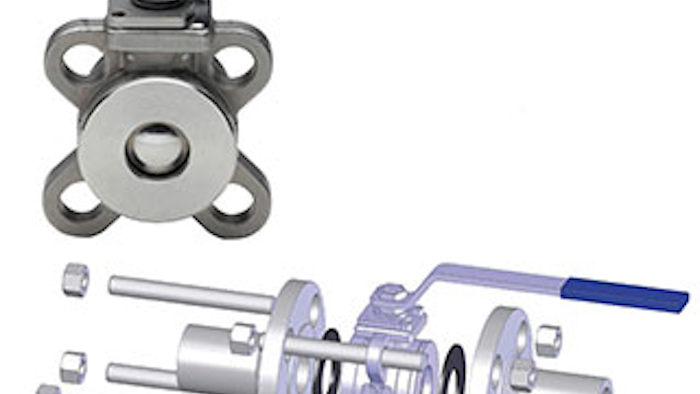

Aligning lugs on the valve body allow the 725000 to be installed securely directly between two ANSI 150 raised-face flanges. This reduces cost and weight significantly compared to conventional flanged ball or gate valves. They are available in smaller sizes than offered by high-performance butterfly valves and are more cost-effective in comparable sizes.

A standard ISO 5211 mounting pad simplifies valve actuation. The 725000 Series are also available in automated valve packages with performance matched Bonomi electric and pneumatic actuators.

PTFE ball seats are standard, with optional steam service trim. Stem seals are PTFE and FKM. With lever handle, the new valves are lockable in the open or closed position.  They are TUV T.A. Luft approved. They also meet NACE MR 0175/ISO 15156 and NACE MR 0103 standards.

For more information on the economical Valpres 725000 Series valves or other Bonomi products, contact Bonomi North America at (704) 412-9031 or visit online at www.bonominorthamerica.com.
