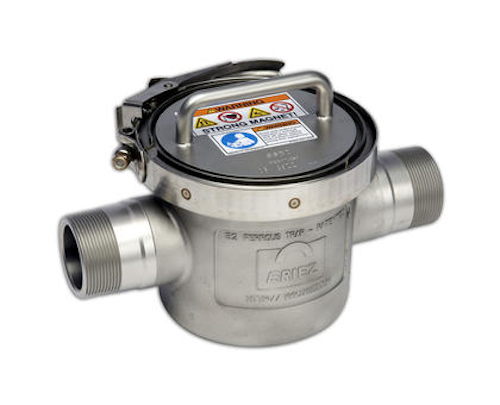

Ferrous Trap Protects Lines And Sensitive Equipment

EriezProGrade Model B Ferrous Traps provide protection for liquid lines and sensitive processing equipment such as pumps. They effectively remove small particles of magnetic scale, rust and fine iron contamination to ensure ultimate product purity.

title
title

EriezProGrade Model B Ferrous Traps provide protection for liquid lines and sensitive processing equipment such as pumps. They effectively remove small particles of magnetic scale, rust and fine iron contamination to ensure ultimate product purity.These powerful separators efficiently remove ferrous contamination from liquid products flowing through two, three and four-inch pipelines. The magnetic element - consisting of a group of magnetic tubes - is arranged to cause the material flow entering the body to impinge against the tubes and filter through the magnetic field, completely covering the open area. This configuration takes advantage of the material change in direction and the difference in inertia between the unwanted iron and the material carrying it. The magnetic circuit is designed so the entrapped iron will have a tendency to work around and cling to the downstream side of the tubes. This action prevents iron particles from being washed off by the continuous flow of material.

For more information and pricing, go to http://prograde.eriez.com/Products/Index/Pgtraps
