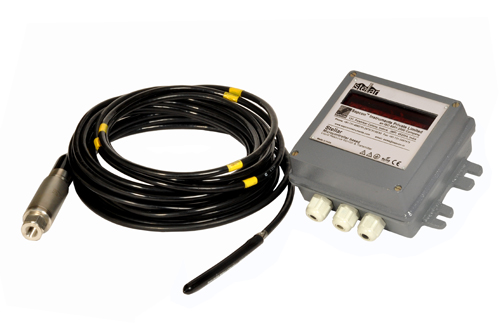

Magnetostrictive Level Transmitter

With rich installation base in liquid handling; SAPCON introduces Magnetostrictive Level Transmitter for continuous monitoring of expensive and excisable liquids in refineries and chilling plants. Chilling plants use media like liquid ammonia which needs careful handling and high accuracy continuous level monitoring. SAPCON's Magnetostrictive is suitable for such applications in chilling pl...

title
title

With rich installation base in liquid handling; SAPCON introduces Magnetostrictive Level Transmitter for continuous monitoring of expensive and excisable liquids in refineries and chilling plants.

Chilling plants use media like liquid ammonia which needs careful handling and high accuracy continuous level monitoring. SAPCON's Magnetostrictive is suitable for such applications in chilling plants and in addition to petrol chemical refineries.

Magnetostrictive Level Transmitter is based on the principle of magnetic field interaction of two different directions, which sends out a signal to determine the exact level of material. Therefore if there is a power failure and reconnection is needed, it will not affect the previous setting parameter. As Magnetostrictive Level Transmitter gives direct signal output, additional output interface is not needed.

Magnetostrictive Level Transmitter measures the accurate medium by calculating time travel of signal formed by two different magnetic field. One comes from the float ball and other from current pulse given by the waveguide tube. When the pulse signal is reversed back to the waveguide coil the transmitter will calculate the float ball (Liquid Level) based on the time interval and travel speed the pulse signal between the two magnetic field. This action is continuously and timely. The change of float will be detected promptly with absolute signal output.

Some of its features are:
1. High performance
2. Absolute position output
3. Prompt response time
4. High stable and high reliable
5. Multi Output Selection
6. Easy installation and no periodic Maintenance
7. High resolution and high accuracy protection rating
8. Durable Structure with IP-65.

For enquires, please contact us on: sales@sapcon.in.
