Self-Loading Regulator Valves

The SLR-1 consists of a DA4 high-performance, pressure-loaded, flow-to-open pressure-reducing regulator with either a Cashco P1 or Fairchild Model 10 pressure-reducing regulator mounted onto it.

title
title

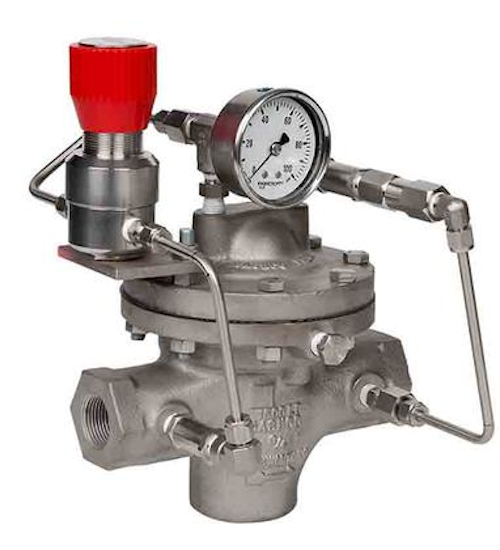

The SLR-1 consists of a DA4 high-performance, pressure-loaded, flow-to-open pressure-reducing regulator with either a Cashco P1    or Fairchild Model 10 pressure-reducing regulator mounted onto it. The inlet of the main valve will divert into the P1/Fairchild, which in turn reduces the pressure to whatever level is required inside the cover dome in order to maintain the set point of the main valve.

The pressure inside the cover dome is static, which means it doesn’t exhaust like it does on our ULR-1 valve. To shut down a system or reduce the outlet rating of the main valve, the built-in, self-relieving feature on the P1/Fairchild will release the gas to the atmosphere as the adjusting screw is backed out, thus ‘dumping’ the dome. Thus, the SLR-1 can only be sold into environmentally safe applications.

The other option, however, is the new SLR-2 self-loading regulator valve. Similar to the SLR-1, it employs a P1/Fairchild valve mounted onto a DA4 pressure-reducing regulator. Unlike the SLR-1, the P1/Fairchild used on the SLR-2 is not self-relieving. Instead, the cover dome pressure will constantly bleed through a filter and check valve and dump back into the outlet of the main valve.

 Learn more at www.cashco.com.
