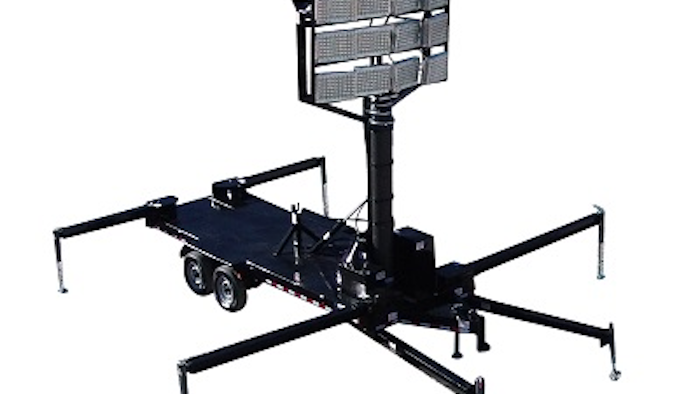

The LM-50-5S-TLR-16X400LTL-LED is a trailer mounted fold over seven stage light mast that provides a safe and effective way for operators to quickly deploy 16 400 watt LED light heads to elevations up to 50 feet. This pneumatic light tower folds over for easy transportation, features a hydraulic ram upright assist, an air powered pneumatic mast and high output LED light fixtures. The entire assembly is mounted on a 21’ by 8’ tandem axle trailer that allows operators to transport this fold over boom from one location to another. This light plant can be extended to 50’ for maximum area coverage and collapsed to 13.5’. The tower is constructed of heat treated aluminum tubing with 2.69’ of overlap per section. The mast is elevated using an included hydraulic ram and is extended to its full height using a trailer mounted air compressor.
The 16 light heads included with this tower are our wet area suitable GAU-LTL-400W-LED high output LED fixtures that produce 52,000 lumens of light at 400 watts each. Each light head contains fifty-four Bridgelux high output LEDs producing 963 lumens each arranged in rows and paired with high purity optics to produce a well-focused 25° wide spot beam that is ideal for providing far reaching concentrated illumination while still covering a substantial amount of area. Each light is securely fastened to the light boom and each lamp includes a support bracket to help maintain lamp stability within its housing. The lamps are hard wired into a NEMA 3R panel located on the end of the telescoping boom. Power is provided to the control box via a 20’ 10/4 SOOW whip with flying leads for connection to terminal mount gensets. The mast elevation is controlled by a push button switch to operate the hydraulic ram, allowing operators to raise the mast to the upright position. The vertical deployment is operated by an up/down level, allowing operators to extend it to its full 50’ height or retract it to the collapsed height.
