PowerGrid's 2-D Barcode Reading Technology

Read 2-D matrix and challenging DPM codes even without visible perimeters. PowerGrid technology, a texture-based location algorithm, takes a unique, inside-out approach to reading 2-D matrix and Direct Part Mark (DPM) codes. While conventional feature-based algorithms start by locating the finder pattern, Cognex’s PowerGrid technology looks for a pattern of alternating light and dark modules within the code.

title
title

PowerGrid technology, a texture-based location algorithm, takes a unique, inside-out approach to reading 2-D matrix and Direct Part Mark (DPM) codes.  While conventional feature-based algorithms start by locating the finder pattern, Cognex’s PowerGrid technology looks for a pattern of alternating light and dark modules within the code.

PowerGrid technology dramatically increases read rates in 2-D barcode-reading applications where a part’s geometry, poor lighting, occlusion, or print-registration errors make it difficult to capture an image of the entire code. PowerGrid technology can locate and read codes even when they exhibit significant damage to or complete elimination of the finder pattern, clocking pattern or quiet zone.

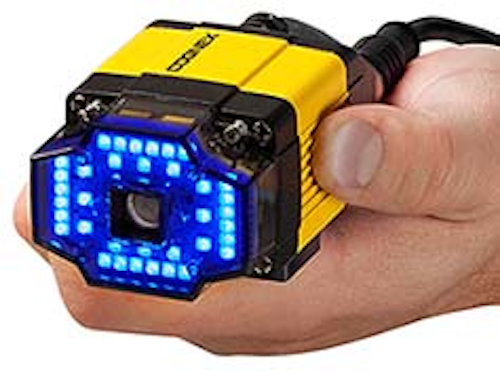

Cognex’s PowerGrid technology is now available on the X models of the DataMan® 300 series fixed-mount barcode readers.

Learn more at www.cognex.com.
