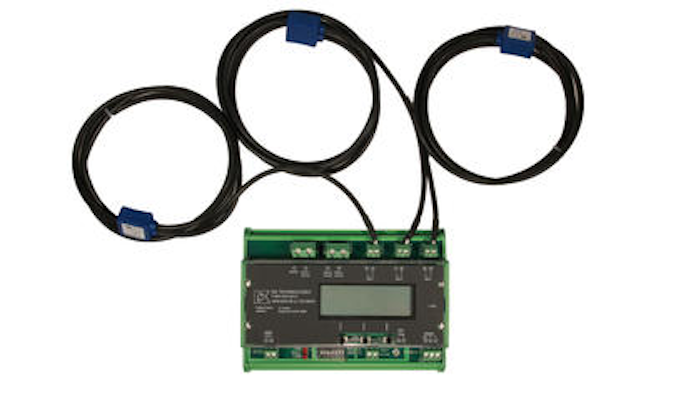

NK Technologies introduces the APN-R Series Power Monitor, which measures the power usage of a single piece
of equipment, an extensive machine system, an area of a plant, or an entire facility. The APN-R is equally suited for large scale plant energy management applications, as well as specific equipment monitoring tasks, such as detecting conveyor jams and overloads, or identifying dry running pumps caused from clogged intake or discharge lines, impeller cavitation or bearing wear. The APN-R is factory configured with 0-500 A or 0-2000 A range flexible coils to measure the load current. The line voltage (up to 600 VAC) connects directly to the transducer; no potential transformer is needed unless the line voltage exceeds 600 volts. The ease of installation over multiple conductors or bus assemblies speeds installation and produces an accurate set of data that will identify areas of excessive energy consumption and allow intervention to reduce demand.
