Linear Inductive Sensors

Pepperl+Fuchs introduces two new PMI40 models to its family of PMI linear inductive sensors.

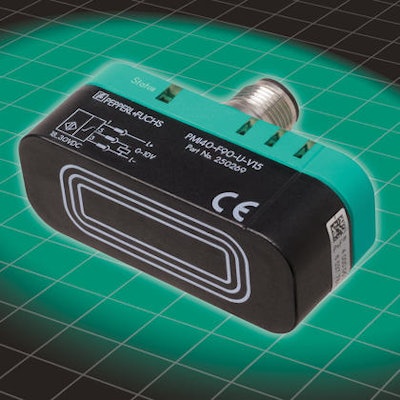

Pepperl+Fuchs introduces two new PMI40 models to its family of PMI linear inductive sensors. PMI40-F90-U-V15 and PMI40-F90-I-V15 sensors offer a 40 mm distance measurement ideal for vertical valve measurements. With these new models, PMI linear inductive sensors are now available with linear ranges of 14mm, 40mm, 80mm, 104mm and 120mm to satisfy a wide range of sensing requirements. The optimal distance from PMI40 to the standard sensor target (BT-F90-W) is 2mm, but an available sensing range of 0.5 to 3 mm delivers accurate linear position regardless of the sensing range. The 40 mm linear distance delivers 33 um resolution. The shorter housing of the PMI40 enables it to be applied where models with longer housings are unsuitable.
