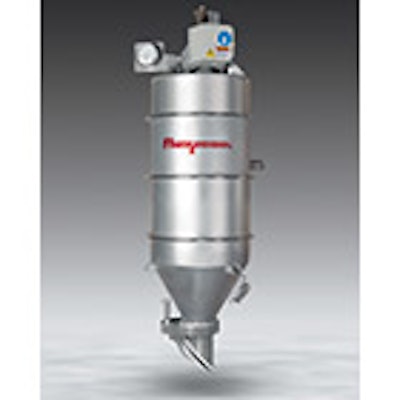

Flexicon has introduced a new Vacuum Receiver with a pneumatically-actuated dump valve for dilute phase pneumatic conveying systems. Constructed of
stainless steel, the vacuum receiver features a rugged, clamp-together design that facilitates rapid, tool-free disassembly for filter cleaning and maintenance. The modular design permits the addition of cylinder segments for increased holding volume. The flap-type dump valve is actuated by a pneumatic cylinder via manual contact closure, or programmable controls based on weight gain, elapsed time or other user-defined parameters. This unit employs a single, large diameter filter cartridge facilitating rapid filter changes, and automatic reverse pulse jet cleaning of the filter element to maintain conveying efficiency during operation. The vacuum receivers separate solids from the air stream using filter media and gravity, and are generally specified when materials contain smaller particles that are prone to dusting and/or when dust containment is a primary requirement.
Flexicon Corporation
