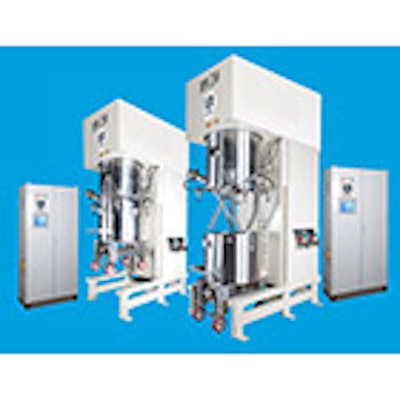

Ross Mixers are now offered with HMI and SCADA Packages for data entry and recipe selection from a color touchscreen. The PLC Control Panel
supplied for full mixing, heating and vacuum control maximizes a machine’s overall productivity by significantly improving batch-to-batch consistency and reducing operator errors while accelerating product changeovers. It also enables automatic data logging into a CSV or Excel file format with time and date stamp. Designed to rotate on their own axes while orbiting the vessel on a common axis, these helical blades are ideal for batching heavy pastes and putty-like materials as high as 6 million centipoise (cP). The mixer’s processing capability is enhanced by the use of recipe controls that transforms the entire mixing/discharge/cleaning cycle into an automated, simplified process with a very high degree of repeatability. The standard module allows users to write up to 10 recipes each with 10 process sequences based on agitator speed, time, temperature and vacuum/pressure level set points.
Charles Ross & Son Company
