Pulse-Width-Modulated Controllers

IronHorse GSD1 series DC drives are high-performance Pulse-Width-Modulated (PWM) controllers for 12 to 36 volt battery/solar-powered equipment providing smooth control with high-efficiency operation.

title
title

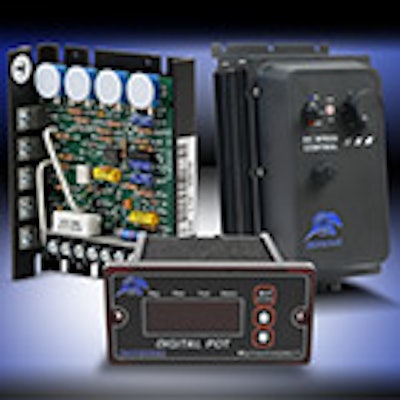

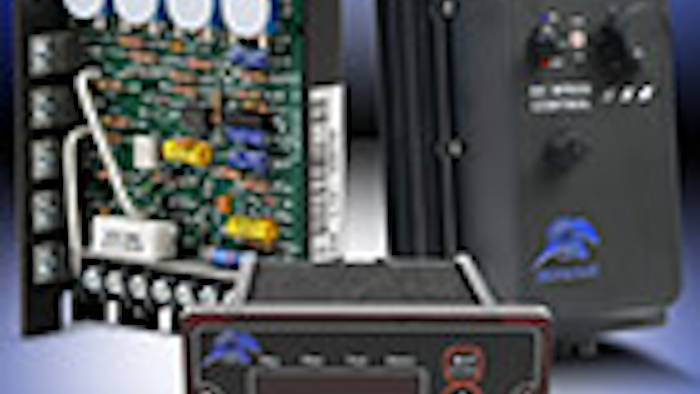

IronHorse GSD1 series DC drives are high-performance Pulse-Width-Modulated (PWM) controllers for 12 to 36 volt battery/solar-powered equipment providing smooth control with high-efficiency operation. Design features include adjustable maximum/minimum speed, current limit, I.R. compensation and acceleration. The adjustable current-limit feature protects the control, battery and motor from sustained overloads. GSD1 series DC drives, available up to ¼ hp, are available in open-frame and NEMA 4X enclosed styles, and all come standard with a speed pot, knob, and dial plate, with an optional 0-10VDC analog input signal card also available. The series drives are general-purpose, economical variable speed controllers for small DC and universal motor applications up to 1/3 hp. Open-frame and NEMA 4 enclosed models are available with dual input voltages (12/24 VAC or 120/240 VAC) with a DC output current rating of 2 Amps, adjustable trim pot settings, and quick-connect terminal pins.







Automation Direct

www.automationdirect.com/DC-drives
