Intelligent Motor

Dr. Fritz Faulhaber GmbH & Co. KG and Technosoft SA have combined their skills and knowledge to produce one of the world’s smallest intelligent motors for speed and position control with EtherCAT communication, which complies with CoE (CAN application protocol over EtherCAT).

title
title

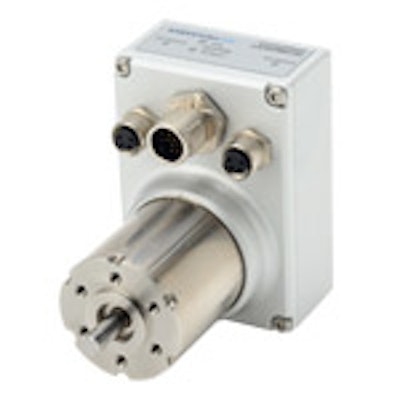

Dr. Fritz Faulhaber GmbH & Co. KG and Technosoft SA have combined their skills and knowledge to produce one of the world’s smallest intelligent motors for speed and position control with EtherCAT communication, which complies with CoE (CAN application protocol over EtherCAT). An intelligent motor can be used in many applications, but it has been developed for medical analysis and dosing machines, pick and place and welding robots, instrumentation and optical equipment, unmanned military vehicles, packaging bottling and labelling machines. This intelligent motor has a maximum speed of 6000 rpm and a stall torque of 97 mNM, which is achieved from a motor with a diameter of 32 mm and the maximum length of the integrated unit is a mere 92.8 mm. The controller is housed in an oblong, which is 46.5 mm x 67 mm, with a depth of 26 mm.



TECHNOSOFT S.A

www.technosoftmotion.com
