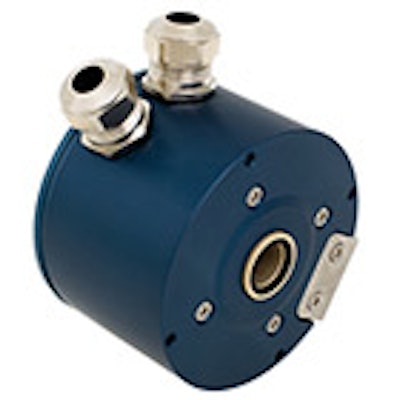

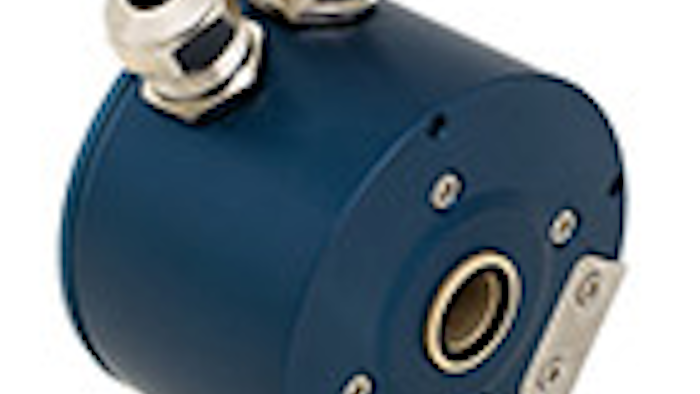

Leine & Linde’s heavy duty Model 855 and 865 encoders incorporate heavy duty bearings, robust enclosures and electronic designs that are well-suited to withstand an environment where powerful vibrations and electronic disturbances such as where overvoltage and short circuits are the norm. To meet the needs of equipment safety issues, the new models incorporate two encoders utilizing separate scanning LEDs and electronic circuits into one housing. The outputs are galvanically isolated from each other and may be connected to two separate systems depending upon the needs of the application. Both encoders can be supplied with dual radial M23 12-pin connectors, while the 865 can also support either customer-installed or pre-installed cables. Most encoder variants on these models have the same pulse rate on both outputs, and a large number of output resolutions are available. Special limited variants are also possible where the two outputs have separate resolution, e.g. 1024-2048 ppr. High voltage TTL, High Voltage/High Current TTL, RS-422, and standard 5 Vdc TTL output options can be mixed and matched for either output. Short-circuit protection is available for the high voltage options.
