Telescoping Light Mast

Larson Electronics announces the release of a 25 foot telescoping light mast with 360° rotating capabilities.

title
title

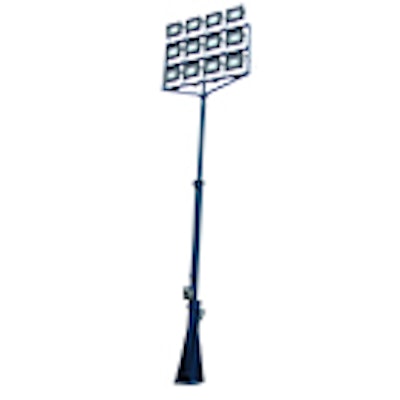

Larson Electronics announces the release of a 25 foot telescoping light mast with 360° rotating capabilities. The LM-25-3S-EPLC2-12X150RT-RB is a fold over light mast that provides a safe and effective way for operators to quickly deploy twelve 150 watt LED light heads that will produce 150,000 lumens and illuminate approximately seven acres of work space. The mast collapses from 25 feet to 12 feet for convenient transportation and storage. The lights are wired to an explosion proof junction box at the base of the tower with 10 feet of SOOW cable that is terminated in an explosion proof plug. These light masts are typically mounted to trailers or other stable surfaces by a 12” by 12”, ½” thick mounting baseplate which has been predrilled to accept four ¾” anchor bolts. When lowered to 12 feet, the mast can withstand winds up to 125 miles per hour. The light tower weighs approximately 425 pounds and can easily support and lift 150 pounds of weight.
