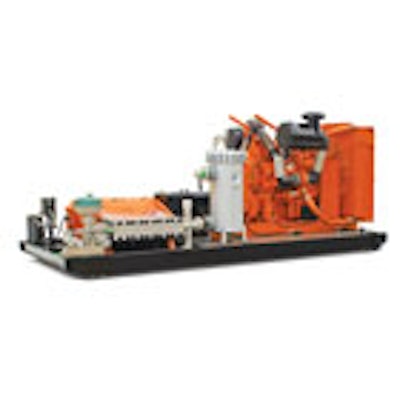

NLB Corp.’s NLB 1005 Series combine the power of 1,000 hp (746 kW) with 4,000 psi-to-20,000 psi convertibility (275 bar to 1,400 bar) for big jobs. The 1005 Series includes two models whose in-line fluid end can be easily converted with a simple kit to any of five operating pressures and flows, up to a maximum flow of 333 gpm (1,262 lpm).
- Diesel-powered units are built around NLB’s slow-running quintuplex plunger pump
- Feature internal gearing that eliminates the need for large pulleys or belts, reducing the overall footprint
- High-uptime features include a forged steel crankshaft mounted in heavy-duty bearings and drive pinion output shafts on both sides of the pump to accommodate opposite-hand drive
- All operating controls, including the by-pass valve and pressure gauge with snubber, are mounted on a separate accessory manifold for extra protection
