Measure Vibration & Temperature

SKF’s CMPT Copperhead Transmitter Unit (CTU) is a new 24/7 digital vibration- and temperature-measurement and transmission tool that can work with machinery fault detection systems for fans, pumps, gearboxes and electric motors.

title
title

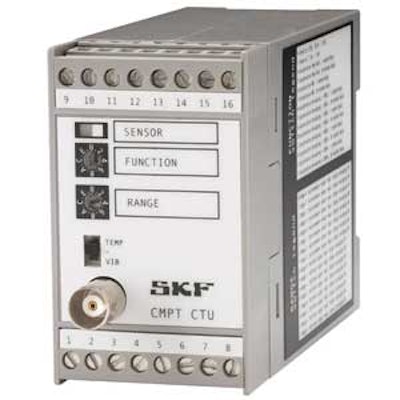

CMPT Copperhead Transmitter UnitSKF’s CMPT Copperhead Transmitter Unit (CTU) is a new 24/7 digital vibration- and temperature-measurement and transmission tool that can work with machinery fault detection systems for fans, pumps, gearboxes and electric motors. According to the company, the unit delivers:

  • The ability to measure temperature as well as measure and analyse three types of vibration signals — SKF’s acceleration enveloping, acceleration or velocity — while enabling the user to select the appropriate analysis for the preferred application.
  • Special functions for low-speed machinery, with an ability to monitor unbalance and misalignment down to 120 r/min, and bearing and gearbox condition down to 20 r/min
  • Date transmission using 4-20mA or 0-10V DC or CAN-bus messages.
  • The CAN-bus interface enables remote communication with a control system or operator terminal to allow remote configuration and monitoring of the CMPT CTU, and also allows multiple CMPT CTUs to be connected by a serial communication cable.
  • Can be delivered as a turn-key solution with an operating terminal (CMPT HMI) for alarm display, logging and management.
  • Up to 64 distributed CMPT CTUs can be connected to one operating terminal.
  • The CMPT HMI features a user-friendly 3.5-inch or 5.7-inch touchscreen and is delivered with a pre-programmed alarm list that can be downloaded to a USB memory flash drive.
  • The terminal can be customized with operator-specific views, multiple languages and various output options.

www.skf.com
