Dynamic, yet Compact Blending Systems

Fluid Dynamics now offers the L4-D and L6-D Series dynaBLEND™ liquid-polymer blending systems as its smallest and lightest dynaBLEND units.

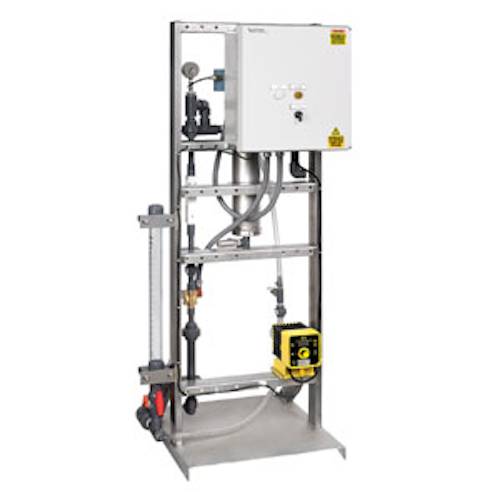

Fluid Dynamics L4-DFluid Dynamics now offers its L4-D and L6-D Series dynaBLEND™ liquid-polymer blending systems as the smallest and lightest (175 pounds/80 kg and 220 pounds/100 kg, respectively) dynaBLEND units with:

  • Availability in 3 sizes each — the L4-300 from 30 to 300 GPH (113 to 1,136 LPH), the L4-600 from 60 to 600 GPH (227 to 2,271 LPH), the L4-1200 from 120 to 1,200 GPH (454 to 4,543 LPH), the L6-1800 from 180 to 1,800 GPH (681 to 6,814 LPH), the L6-2400 from 240 to 2,400 GPH (909 to 9,085 LPH) and the L6-3000 from 300 to 3,000 GPH (1,136 to 11,356 LPH).
  • A diaphragm pump that makes them the most economical polymer-blending system that is currently offered by Fluid Dynamics.
  • 5 diaphragm pump sizes — 0.4D, 1.0D, 2.5D, 4.5D and 8.0D — with polymer flow-rate ranges from 0.02 to 8.0 GPH (0.08 to 30.0 LPH).
  • The ability to handle operating pressures to 100 PSI (689 kPa) and run on single-phase 115-VAC standard power.
  • The need for a water supply that must be able to provide a maximum flow rate of 35 to 50 PSI (240 to 345 kPa) greater than the water pressure at the point of use.
