Compact, Close-Coupled Pumps

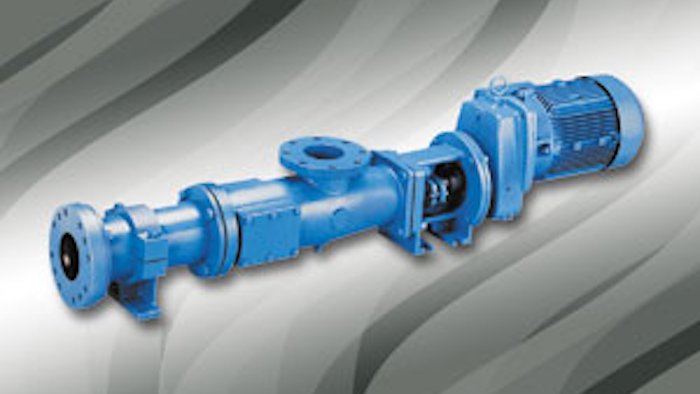

Moyno, Inc. offers Moyno® 1000 close-coupled positive displacement pumps, which are perfect for areas where space is at a premium.

Moyno, Inc. offers Moyno® 1000 close-coupled positive displacement pumps, which, according to the company, provide greater versatility and performance advantages over other types of positive displacements pumps. The pumps are additionally characterized by:

  • Compact, close-coupled configuration, ideal where space is a premium.
  • Suitability for variety of services including shear-sensitive chemical feeds, adhesives, lime, polymer metering, slurries, and viscous crude-oil-transfer applications.
  • A pin-type universal joint that is sealed and lubricated, providing long life with minimum maintenance.
  • A two-piece drive shaft, which allows easy assembly, maintenance, and mechanical-seal access.
  • Low-shear pumping action.
  • Smooth, non-pulsating flow.
  • Flow rates from 0.38 to 320 gpm.
  • Pressure capabilities to 350 psi.



www.moyno.com
