Explosion-Proof Lighting … ‘Nuff Said

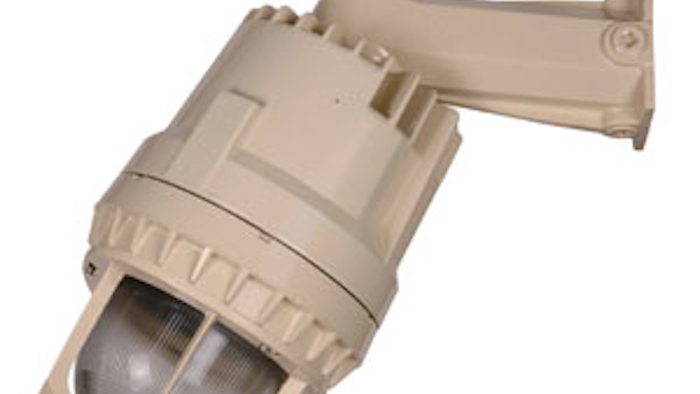

Hazlux® 5 HID lighting fixtures from Thomas & Betts allow for safe installation in a wide variety of areas that require explosion-proof operation.

Hazlux® 5 HID lighting fixtures from Thomas & Betts allow for safe installation in a wide variety of areas that require explosion-proof operation. Furthermore, these fixtures feature:

  • Thermal- and shock-resistant glass globes that are factory assembled, and pre-tested for quality and safety.
  • A choice of high-pressure sodium or metal halide lamps in wattages from 50 to 400 watts.
  • A temperature range of 32° to 104°F (-30° to 40°C).
  • Dual-pitch Acme threads to greatly reduce the risk of cross threading, in addition to make assembly easier and faster than designs with standard V-cut threads.
  • A ballast that is pre-wired to the lower half of the electrical connection block, which enables the wireless connection of the ballast housing to the mounting module.
  • Powder epoxy-coated die-cast aluminum guards that resist corrosion, and are equipped with keyhole slots for easy attachment to stainless steel screws.
  • A factory-sealed assembly that meets code requirements without the need for external sealing fittings.
  • Pendant, ceiling, wall, angle stanchion and bulkhead mounting options.
  • Availability of polymeric reflectors in standard dome or 30°-angle versions.
  • A UL844 certification for Class I, Div. 1, Groups C and D hazardous locations, as well as UL844 paint spray (up to 100 watts), and Class II, Div. 1, Groups E, F and G outdoor wet locations and UL 1598A marine locations.
  • Suitability for use in many outdoor, offshore, hose-down and coastal locations.
