A Customized Exothermic Reaction Solution

KNF NEUBERGER ’s N0150 diaphragm pumps can now be customized with water-cooled heads to prevent pump overheating in process applications where exothermic reactions from helium, xenon, and other gases may produce excessive heat and potentially shorten pump service life.

title
title

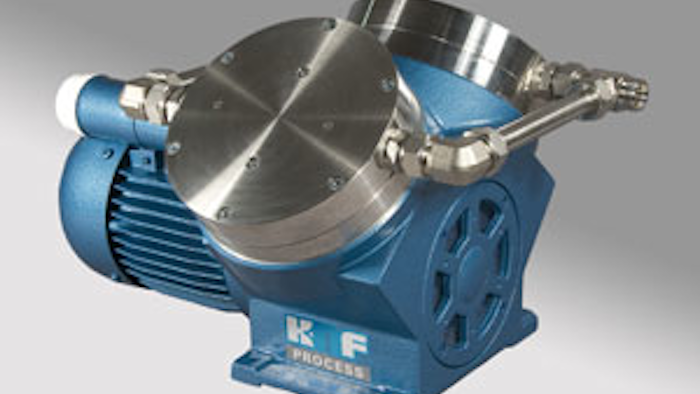

N0150 diaphragm pumpsKNF NEUBERGER’s N0150 diaphragm pumps can now be customized with water-cooled heads to prevent pump overheating in process applications where exothermic reactions from helium, xenon, and other gases may produce excessive heat and potentially shorten pump service life. The pumps:

  • Can ideally serve industries ranging from specialty gases to radiopharmaceuticals, among others.
  • Are designed to deliver the highest flow rate of any electrically operated diaphragm pump.
  • Operate without oil to eliminate risk of medium contamination and can be equipped with a double diaphragm system for increased safety critical when handling particularly dangerous gases.
  • Can be customized with a variety of options to satisfy application requirements, in addition to the water-cooled heads.
  • Can be supplied with explosion-proof motors for compliance with ATEX and Class 1 Division 1 Groups C and D hazardous locations; corrosion-resistant models can be developed to withstand harsh environments; specialized leak-tight capabilities can be enhanced; and a wide range of available pump materials can be specified to expand application potential.
  • Can achieve flow rates up to 300 L/min (10 SCFM), maximum vacuums up to 29.3 in. Hg, and maximum pressure up to 30 psig, depending on model.
  • Are designed to exhibit significantly low leak rates ranging from 6 x 10-3 mbar l/s (standard models) to 6 x 10-6 mbar l/s (double-diaphragm versions).
  • Feature a cast aluminum compressor housing that imparts optimized rigidity and stability and use of a heavy-duty motor with sealed ball bearings contributes to smooth-running and quiet operation.
  • Feature accessories,  including noise and dust filters, hose connectors, and shock mounts.

knfusa@knf.com

www.knfprocess.com
