Highly Accurate Pressure Transducers

OMEGA Engineering introduces its PXM309 Metric Series stainless steel pressure transducer with a static accuracy of 0.25 percent and a 1 percent total error band.

title
title

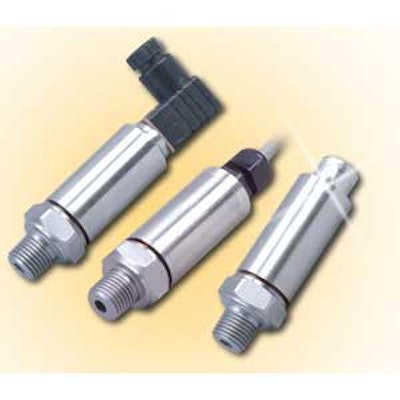

OMEGA PXM309OMEGA Engineering introduces its PXM309 Metric Series stainless steel pressure transducer with:

  • A static accuracy of 0.25 percent and a 1 percent total error band over a compensated range of -20° to 85°C on ranges of 1 to 700 BAR.
  • All stainless steel construction.
  • Solid-state reliability that makes these transducers suitable for most industrial applications, as well as engine test stands.
  • A 2-meter cable with flying leads.
  • A G 1/4 male metric fitting pressure connection.
  • 3 electrical terminations from which to choose.
  • A mini-DIN connector or a 4-pin M12 connector.
  • Your choice from 2 outputs — either 0 to 10 VDC or 4 to 20 mA.
  • An IP65 environmental rating, in addition to CE compliance.
  • A 5-point NIST-traceable calibration certificate.
  • Availability of ranges from 70 mBAR to 3.5 BAR with a slightly larger total error band.
