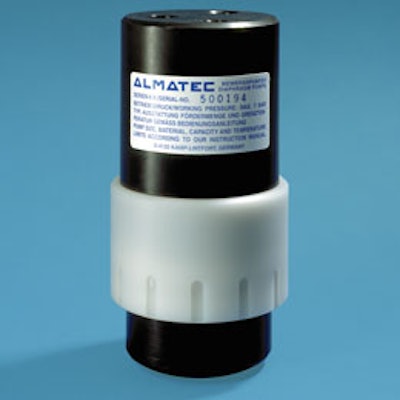

Almatec®‘s AD 6 Pneumatic Diaphragm Pump has been developed for use in laboratory applications. The pump:
- Is designed to handle a maximum delivery volume of 250 lph (66 gph), with the delivery volume able to be adjusted just by changing the air flow.
- Is equipped with spring-loaded valves and can be installed in any position.
- Has a housing constructed of solid PTFE conductive, making it corrosion-resistant to virtually all media and usable in explosion-hazard areas or inflammable liquids.
- Features submersible operation, dry-lift capabilities, proof against overloading and dry-running, PTFE diaphragms, gentle liquid displacement, acceptable use in unattended continuous tests, the ability to pull samples from wells up to 50 meters (164 feet), and optional connection kits for laboratory and sample pulling.
