Subsea Wellbore Pressure & Temperature Transducer

Stellar Technology’s model PT36XX has temperature and pressure sensors located at the flush-end of the wellbore probe, a design feature that improves dynamic response and alleviates clogging.

title
title

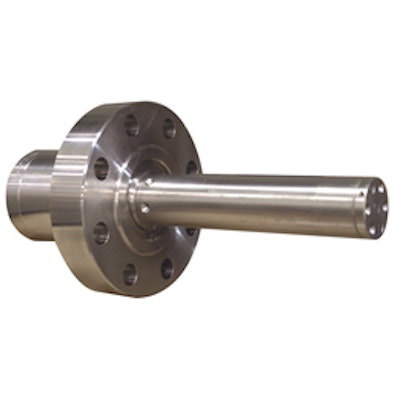

Stellar Technology’s model PT36XXStellar Technology’s model PT36XX subsea wellbore pressure and temperature transducer delivers long-term performance in harsh subsea oil and gas exploration environments. It features:

  • Total error band of ±1 percnet of full scale output.
  • Working pressures to 15,000 psi and seawater depths to 17,000 ft.
  • Temperature and pressure sensors located at the flush-end of the wellbore probe, a design feature that improves dynamic response and alleviates clogging.
  • Dual pressure containment rated to 20,000 psi.
  • Inconel and 316 stainless steel construction with no external load-bearing welds, thus increasing service life and improving field serviceability.
  • Pressure only or temperature only configurations.
  • Standard 3 1/16-inch API flange.
  • Probe lengths of 3” to 24”.

sales@stellartech.com
www.stellartech.com
