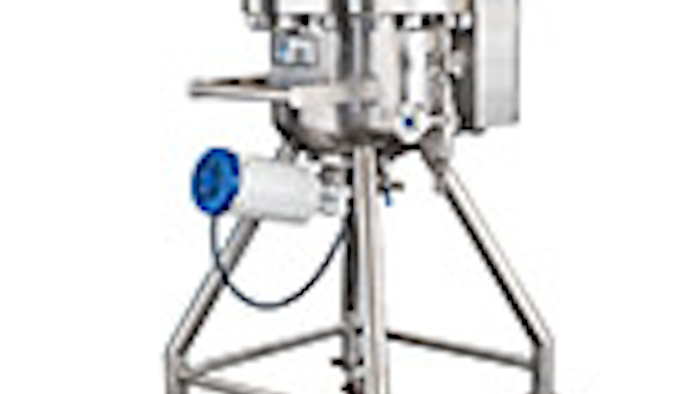

Introducing a new line of Compounding & Filling Vessels with Magnetically-Coupled Turbine Agitator for pharmaceutical, biotech, cosmetic, food and other sterile applications. The portable vessel is rated for 375 psi to full vacuum at 250oF. Both the vessel and jacket are ASME Code stamped and board certified. All wetted parts are stainless steel 316L with 240-grit (<20Ra) finish, electropolished and passivated. The vessel is easily wheeled from one location to another using swivel casters and FDA-compliant anti-microbial wheels with brakes. The magnetically-coupled turbine floats during operation up to 490 rpm. Because it is bottom-mounted, complete mixing is ensured regardless of batch level. It is optimized for cleaning and sterilization with no mechanical seals or stuffing boxes to pose a contamination risk. In between batches, a CIP tube and spray ball assembly is lowered into the vessel. Cleaning solution is sprayed in a 360° pattern at 34-53 gpm (15-37 psi).
Charles Ross & Son Company; Hauppauge, NY; 1-800-243-ROSS; www.mixers.com
