Magnetic Field Sensor

Introducing the newest member of Balluff‘s magnetic field sensors - the BMF 243 drop-in C-slot sensor.

title
title

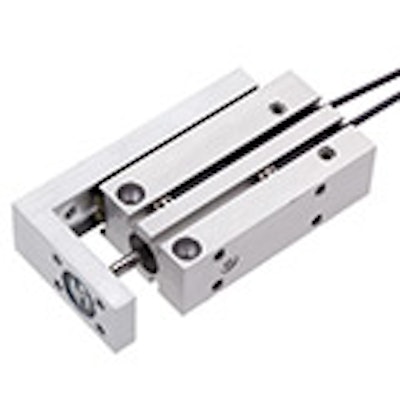

Introducing the newest member of Balluff‘s magnetic field sensors - the BMF 243 drop-in C-slot sensor. The new BMF 243 compact sensor [[{"fid":"116694","view_mode":"default","fields":{"field_file_image_alt_text[und][0][value]":"","field_file_image_title_text[und][0][value]":""},"type":"media","attributes":{"height":179,"width":250,"style":"float: right; margin: 10px;","class":"media-element file-default"}}]]offers high performance reserves for cylinders with both weak as well as with strong magnets and offers high repeat accuracy and small hysteresis. Thanks to its small dimensions of 3.8 x 24 x 3 mm, it’s the ideal choice for particularly small grippers and cylinders with C-slots. With its integrated bracket, the sensor is simply inserted into the slot from above, fitting completely into the cylinder without protruding.  The BMF 243 is supplied with a cable clip that guarantees optimum strain relief and secures cable routing.

Features of the new BMF 243 sensor:

  • Installs from above for easy drop-in installation
  • Superior holding strength
  • Miniature design for short stroke cylinders
  • Precise, accurate switch point
  • Short circuit, overload and reverse polarity protected





Balluff Inc.

 www.balluff.us/bmfcenter
