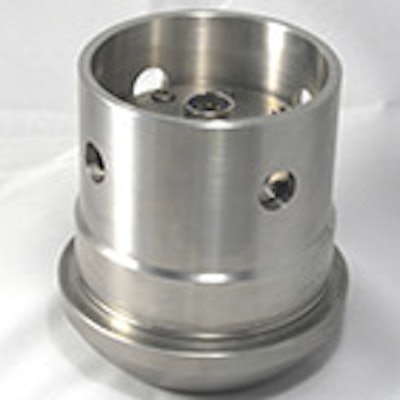

The 1502 Hammer Union pressure sensor from tecsis LP is designed for a wide variety of drilling and well servicing applications and is able to stand up to the rigors of cementing, choke and kill operations, BOPs and hydraulic fracturing in shale oil and shale gas [[{"fid":"116675","view_mode":"default","fields":{"field_file_image_alt_text[und][0][value]":"The new 1502 Hammer Union pressure sensor from tecsis LP is designed for a wide variety of drilling and well servicing applications and is able to stand up to the rigors of cementing, choke and kill operations, BOPs and hydraulic fracturing in shale oil a","field_file_image_title_text[und][0][value]":""},"type":"media","attributes":{"height":312,"width":250,"style":"float: right; margin: 10px;","class":"media-element file-default"}}]]formations. This pressure transducer is built to stand up to sour gas environments with all-welded stainless steel construction and inconel X-750 wetted parts. The 1502 is designed for reliable service with enhanced shock and vibration resistance, a wide operating temperature and a NEMA 4 rating. The large diameter housing allows easy access and protects the connector. The device delivers static accuracy of 0.25% FS (BFSL) over standard ranges of 0- 5,000, 0-10,000, 0-15,000 and 0-20,000 psi. It requires 10 to 28Vdc excitation and provides an intrinsically safe 4-20mA 2-wire output. Operating temperature is -40° to +200°F, with a compensated range of -20° to +185°.
tecsis LP
