Eliminate Product Loss With Dry-Break Couplings

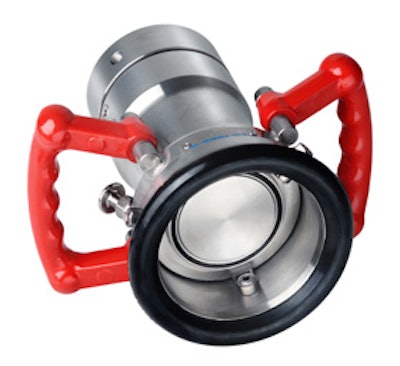

Novaflex presents TODO-GAS® couplings with its patented tapered valve seating - specifically designed for the safe transfer of LPG (typically propane/butane) in both liquid and vapor phases.

title
title

Novaflex presents TODO-GAS® couplings with its patented tapered valve seating — specifically designed for the safe transfer of LPG (typically propane/butane) in both liquid and vapor phases. According to the company, the couplings additionally grant:

  • A self-interlocking valve system to eliminate the possibility of incorrect connections or disconnections, and thus product loss.
  • Flow rates from 200 LPM (52 GPM) for the 1-inch version up to 2,500 LPM (658 GPM) for the 3-inch model.
  • A simple single rotation to engage each valve half to permit flow.
  • 1-step operation due to an integral swivel that facilitates coupling orientation while allowing the hose to relax, thereby eliminating torque stress.
  • A typical emission reduction greater than 99 percent compared to existing thread-based couplings.
  • Availability in 316L stainless steel and brass with either threaded (ISO/NPT) or flanged 1-, 2- and 3-inch (dia.) connections.
  • No levers, buttons or locks.

[email protected]
www.novaflex.com
Video: www.novaflex.com/productcart/pc/todo_videos.html
