A Magnetizing Flow Switch

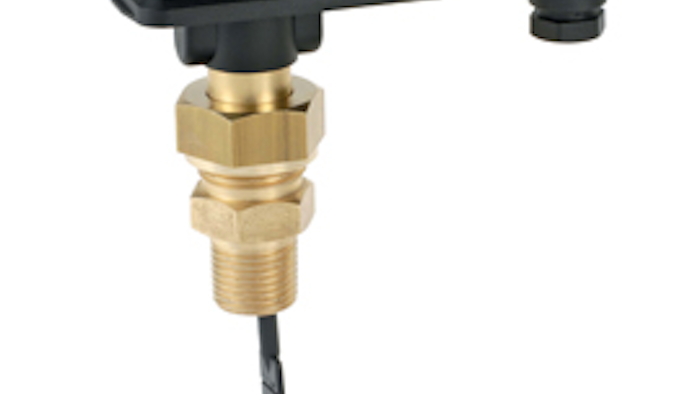

OMEGA 's FSW300 Series flow switch is comprised of a paddle system with a permanent magnet attached and a reed contact (above that magnet) located outside the fluid flow. A second magnet with opposing poles creates the force necessary to reset the switch back to no-flow position.

title
title

OMEGA's FSW300 Series flow switch is comprised of a paddle system with a permanent magnet attached and a reed contact (above that magnet) located outside the fluid flow. A second magnet with opposing poles creates the force necessary to reset the switch back to no-flow position. These flow switches further incorporate:

  • An adjustable switch point.
  • Low pressure drop.
  • Instantaneous response.
  • High repeatability.
  • CE compliance.
  • Suitability for water and chemical applications.
