Faro Creaform, a business of Ametek and provider of 3D scanning and portable CMM solutions, is helping auto racing teams transform how they design, validate and maintain race cars through high-precision metrology technologies, including the Quantum X FaroArm and Vantage Max Laser Trackers.
As modern race programs push the limits of speed, safety and efficiency, these systems give engineers and technicians the dimensional confidence they need to make faster, better-informed decisions throughout the vehicle lifecycle.
The Vantage Max Laser Tracker features:
- Large-volume, high-accuracy measurement for entire cars, rigs and fixtures.
- The ability to combine distance and angular data through FARO’s integrated Absolute Distance Measurement (iADM) system–reduces drift and maintains accuracy over long ranges.
- Mounted on a stable tripod or pedestal.
- The ability to capture true 3D positions of frames, bodywork and assemblies, validate alignment against CAD models and confirm that critical features stay within tight tolerances before vehicles reach the track.
- Enhanced 6DoF probing to measure hidden or obstructed areas without full line-of-sight, minimizing tracker moves and tool changes and creating more efficient inspection workflows on the shop floor.
When paired with the FARO® Super 6DoF TrackArm, teams can merge the long-range accuracy of the Vantage Max with the flexibility of the Quantum X FaroArm to inspect both large structures and smaller, hard-to-reach parts in a unified coordinate system.

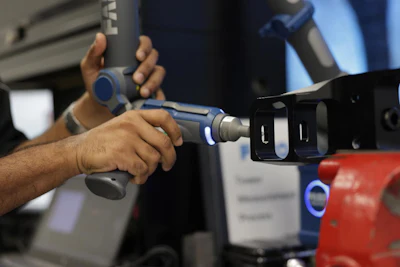

Faro Creaform is helping auto racing teams design, validate and maintain race cars through high-precision metrology technologies.Faro Creaform

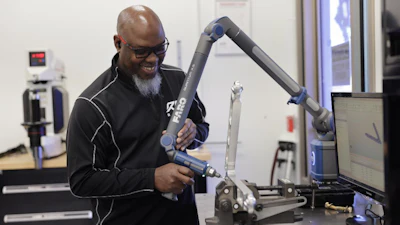

The Quantum X acts as a portable CMM ideal for detailed race components such as control arms, intake manifolds and brake parts, enabling high-accuracy probing and scanning that can be directly compared against CAD to identify geometric deviations, surface flatness issues or wear-related deformation over race cycles.
Used with FARO CAM2 Software for part-to-CAD inspection, dimensional control and GD&T analysis, this ecosystem helps race organizations reduce rework and scrap, improve correlation between simulation and reality and support data-driven setup and development decisions.
The Quantum X and Vantage Max give race organizations a practical, scalable path toward more precise, efficient and confident decision-making. The same capabilities that help optimize alignment, verify complex assemblies and streamline workflows in racing environments are readily transferable to any manufacturing or maintenance operation dependent on quality, speed and repeatability.
For more information, visit https://www.faro.com/.
