Pipe Beveling Tool Combines High Torque and Low RPMs

Self-centering and chatter-free.

16026 Esco
Esco Tool

Esco Tool (Holliston, MA) released the Mini-MILLHOG, an air powered, portable pipe machining tool that combines high torque and low RPMs for beveling and facing super-alloyed tube and pipe.

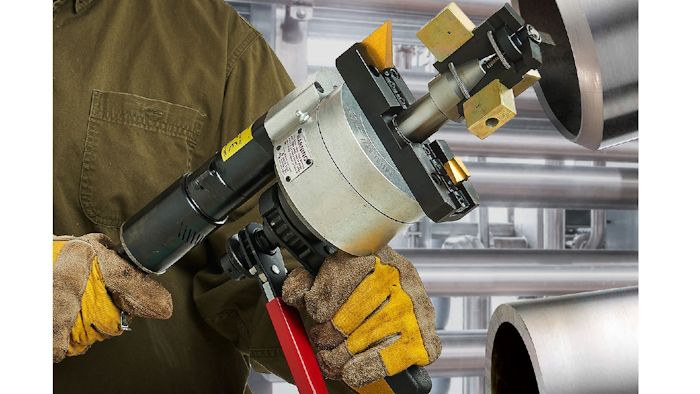

The Esco Mini-MILLHOG is a compact, portable pneumatic I.D. clamping tube and pipe beveling tool with a working weight of 27.5 lbs. that squares itself when mounting and provides high torque with low RPM. Featuring smooth chatter-free operation, this tool is capable of any angle of prep and produces a clean continuous chip without using cutting oils or fluids.

Ideal for beveling highly alloyed stainless steel, heavy wall pipe and removing tube weld overlay and membrane cladding, the Esco Mini-MILLHOG is designed for tube and pipe from 1.25 I.D. to 6.625” O.D. with one mandrel covering the majority of the range.

It has a rugged spur gear drive train and all clamping components including the gear rod are heat treated.

The Esco Mini-MILLHOG I.D. Clamping End Prep Tool sells for $6,995.00 and is also available for rent.

escotool.com
